JOONLAN 10G SFP+ (Enhanced Small Form-factor Pluggable) optical transceiver module is designed specifically for 10G Ethernet and Fibre Channel applications, supporting transmission distances ranging from 300 meters to 100 kilometers.
The 10GBASE series includes models such as SFP 10G SR, SFP 10G LR, SFP 10G ER, SFP 10G ZR, 1G/10G adaptive SFP SR, 1G/10G adaptive SFP LR, and 1G/10G SFP+.
The entire series of 10G optical modules comply with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8461, CE, and RoHS standards.
| Product Model | Data Rate (bps) | Wavelength | Transmission Medium | Transmission Distance | Connector | Operating Temperature |
|---|---|---|---|---|---|---|
| 10G SR SFP | 10.3125G | 850nm | Multimode Fiber (MMF) | 300m | LC | 0~70℃; -40~85℃ |

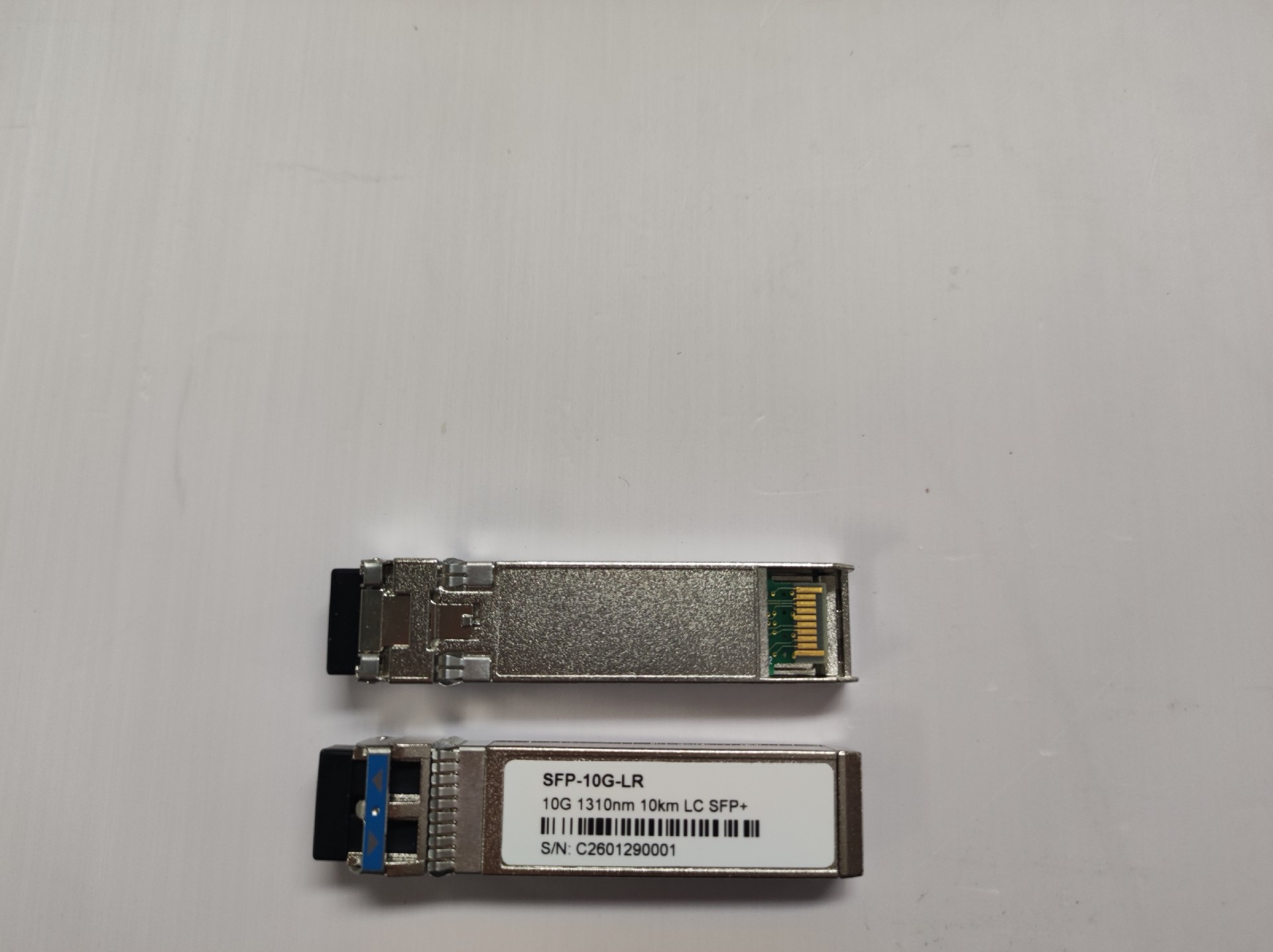

| 10G LR SFP | 10.3125G | 1310nm | Single-mode Fiber (SMF) | 10km | LC | 0~70℃; -40~85℃ |
| 10G eLR SFP | 10.3125G | 1310nm | Single-mode Fiber (SMF) | 20km | LC | 0~70℃; -40~85℃ |
| 10G ER40 SFP | 10.3125G | 1310nm | Single-mode Fiber (SMF) | 40km | LC | 0~70℃; -40~85℃ |
| 10G ER SFP | 10.3125G | 1550nm | Single-mode Fiber (SMF) | 40km | LC | 0~70℃; -40~85℃ |
| 10G ZR SFP | 10.3125G | 1550nm | Single-mode Fiber (SMF) | 80km | LC | 0~70℃; -40~85℃ |
| 10G SFP 100km | 10.3125G | 1550nm | Single-mode Fiber (SMF) | 100km | LC | 0~70℃; -40~85℃ |
| 10G SFP 120km | 10.3125G | 1550nm | Single-mode Fiber (SMF) | 120km | LC | 0~70℃; -40~85℃ |
| SFP+ SR 1G/10G Rate Selectable | 1.25G/10.3125G | 850nm | Multimode Fiber (MMF) | 300m | LC | 0~70℃; -40~85℃ |
| SFP+ LR 1G/10G Rate Selectable | 1.25G/10.3125G | 1310nm | Single-mode Fiber (SMF) | 10km | LC | 0~70℃; -40~85℃ |
FEATURE
Hot-swappable 10Gb SFP optical transceiver module
The data rate can reach up to 11.3G
Transmission distance: 300m to 100km
Compliant with 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, and 10GBASE-ZR standards
Duplex LC connector
I2C management interface, with built-in digital diagnostic function
low power consumption
Operating temperature range: 0℃~70℃ or -40℃~85℃
Complies with RoHS standards
application field
10G Ethernet
SDH/SONET
Fibre Channel
Other optical links
